Dc Fast Ev Charger With Ocpp
The NANCOME NEDF Series DC Fast Charging Pile is a high-performance floor-mounted electric vehicle charging solution, designed to deliver reliable, ultra-fast charging for commercial, public, and fleet applications. With a power range from 40kW to 240kW (expandable up to 360kW), this charger combines robust performance, flexible configuration, and intelligent operation to meet the diverse needs of modern EV infrastructure.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Products Description

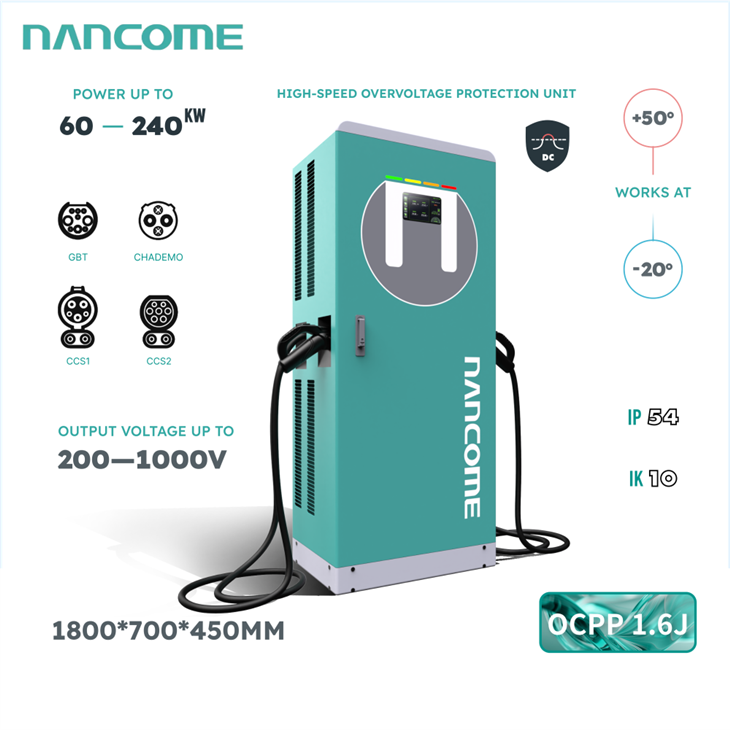

The Dc Fast Ev Charger With Ocpp is a floor-mounted DC fast charging solution built for commercial EV charging projects such as public charging stations, fleet depots, highway service areas, and large parking facilities. It supports output power options of 40kW, 60kW, 80kW, 120kW, 160kW, 180kW, and 240kW, with stable operation under 45–65Hz working frequency and a power factor of ≥0.95 under normal output power, making it suitable for reliable and efficient daily operation.
This charger is designed for customers who need practical deployment, stable charging performance, and flexible project matching. It supports GB/T standard 12V auxiliary power supply and is also compatible with European, American, and Japanese standard 12V configurations, which makes it easier for distributors, operators, and project contractors to use the product for different market requirements, system integration, and customized commercial charging solutions.
Product Specifications
| Category | Item | Specification |
|---|---|---|
| AC Input | Voltage Range | AC380V ±20% |
| Input Connection | 3P + N + PE | |
| Operating Frequency | 45–65Hz | |
| Power Factor | ≥0.95 (under normal output power) | |
| DC Output | Output Power | 40 / 60 / 80 / 120 / 160 / 180 / 240 kW |
| Auxiliary Power Supply | GB/T Standard: Compatible with 12V; European / American / Japanese Standards: 12V | |
| Output Voltage Range | DC200–1000V | |
| Output Current | 0–300A | |
| Number of Charging Connectors | 2 | |
| Max Charging Guns | Up to 4 guns per unit | |
| Charging Cable Length | Standard 5m (optional upgrade available) | |
| Cable Type | Air cooling (optional liquid cooling) | |
| Environmental Conditions | Operating Temperature | -20°C to 50°C (25°C typical) |
| Storage Temperature | -40°C to 85°C (25°C typical) | |
| Thermal Management | Intelligent power derating when shell temperature exceeds 70°C | |
| Humidity Range | 5–90% RH (non-condensing) | |
| Altitude | ≤2000m | |
| Operating Environment | Indoor / Outdoor | |
| Protection Level | IP54 | |
| System Features | Installation Type | Floor-mounted |
| Cooling System | Air cooling (liquid cooling optional) | |
| Customization | OEM / ODM available | |
| Remote Operation | Supported | |
| Application | EV Compatibility | Suitable for 400V / 800V EV platforms |
| Application Scenarios | Fleet / Parking / Highway / Public Charging | |
| Energy Integration | Compatible with energy storage systems (BESS ready) |
Stable Operation in Demanding Environments
This charger is designed for real project conditions, not just standard lab testing. It can operate at altitudes of up to 2000m and works reliably in ambient temperatures from -20°C to 50°C, which makes it suitable for a wide range of installation environments such as outdoor parking lots, highway charging stations, fleet depots, and commercial sites in both cold and hot regions.
For storage and transportation, the unit can withstand temperatures from -40°C to 85°C, helping reduce risks during shipping, warehousing, and project delivery. To protect key components during high-temperature operation, the system is equipped with intelligent thermal management. When the shell temperature exceeds 70°C, the charger will automatically reduce output power to maintain safe and stable operation, which helps improve equipment reliability and service life in continuous-use commercial applications.
Certifications
Some of the certificates that have been obtained
CE
FCC
ROHS
Quality
Serve
Good Faith
Office VR
Selected office locations and showrooms
Frequently Asked Questions
FAQ
Q: What power options are available for this DC fast EV charger?
A: We offer flexible power configurations including 40kW, 60kW, 80kW, 120kW, 160kW, 180kW, and 240kW. For customers planning future expansion, the platform is modular and can be upgraded up to 360kW depending on project requirements. This helps buyers choose the right power level for public charging, fleet depots, highway stations, and commercial parking applications.
Q: How many charging connectors does the charger have?
A: The standard configuration includes 2 charging connectors, and the system can support up to 4 guns per unit depending on the selected design and project configuration. This allows better utilization for commercial sites with higher traffic demand.
Q: What is the output voltage and current range?
A: The charger provides an output voltage range of DC200–1000V and an output current range of 0–300A. This wide output range improves compatibility with different EV battery systems and charging requirements in public and fleet charging environments.
Q: What input power requirements does this charger have?
A: The charger uses AC380V ±20% input, with 3P + N + PE connection, and supports an operating frequency of 45–65Hz. The power factor is ≥0.95 under normal output power. These specifications make it suitable for commercial and industrial power environments.
Q: Can the charger be installed outdoors?
A: Yes. The charger is designed for indoor and outdoor installation. It has an IP54 protection rating, with waterproof, moisture-proof, and corrosion-resistant design features, making it suitable for demanding commercial environments such as outdoor parking lots, roadside charging stations, and transport hubs.
