Level 3 Car DC Charger
The commercial DC fast charging pile is designed for public EV charging stations, fleet depots, and highway charging projects, providing flexible 40–240kW power configurations, wide EV compatibility, dual-gun charging, and reliable long-term operation for commercial charging networks.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Products Description
Commercial DC Fast Charging Pile 40–240kW Floor-mounted
High-Power Commercial DC Fast Charging Solution for EV Infrastructure Projects
The commercial DC fast charging pile is developed for EV charging projects that require stable charging output, scalable deployment, and efficient station operation. It is suitable for public charging stations, commercial parking facilities, transportation hubs, logistics fleet depots, and highway service charging projects.
With charging power options ranging from 40kW to 240kW, the system helps charging station operators select suitable charging capacity according to transformer conditions, charging demand, and site traffic flow. The DC200–1000V output range supports a broad range of electric vehicles and battery voltage platforms commonly used in international EV markets.
The charger is equipped with dual charging connectors as standard and supports expansion up to 4 charging guns per unit. This configuration helps improve charging efficiency during busy operating periods and increases charging station service capability.
Built for commercial operation, the charger supports indoor and outdoor installation with IP54 protection. It also supports remote operation and maintenance, optional liquid cooling, and custom project configurations for different charging infrastructure requirements.
Product Features
40–240kW commercial charging power options
Wide DC200–1000V output voltage compatibility
0–300A charging current output
Dual charging connectors included as standard
Optional support for 4 charging guns
Commercial floor-mounted cabinet structure
Air cooling standard configuration
Optional liquid cooling system available
Remote operation and maintenance support
OEM and custom design service supported

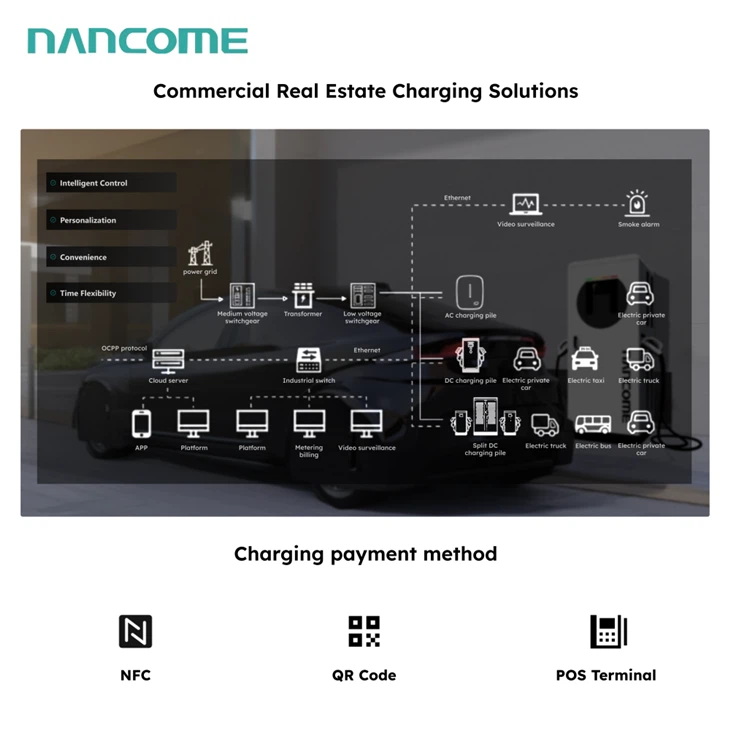

Application Scenarios
Commercial EV charging stations
Fleet charging depots
Public parking charging facilities
Highway service area charging systems
Urban charging infrastructure projects
Battery energy storage integrated charging sites
| Category | Item | Specification |
|---|---|---|
| AC Input | Voltage Range | AC380V ±20% |
| AC Input | Input Connection | 3P + N + PE |
| AC Input | Operating Frequency | 45–65Hz |
| AC Input | Power Factor | ≥0.95 |
| DC Output | Output Power | 40 / 60 / 80 / 120 / 160 / 180 / 240kW |
| DC Output | Auxiliary Power Supply | GB/T Standard Compatible with 12V; European / American / Japanese Standards Compatible with 12V |
| DC Output | Output Voltage Range | DC200–1000V |
| DC Output | Output Current | 0–300A |
| DC Output | Number of Charging Connectors | 2 |
| DC Output | Multi-Gun Expansion | Up to 4 guns supported |
| DC Output | Charging Cable Length | Standard 5-meter cable |
| DC Output | Cooling Method | Air cooling |
| DC Output | Optional Cooling | Liquid cooling optional |
| Environmental Conditions | Operating Temperature | -20°C to 50°C |
| Environmental Conditions | Storage Temperature | -40°C to 85°C |
| Environmental Conditions | Humidity Range | 5–90% RH, non-condensing |
| Environmental Conditions | Altitude | ≤2000m |
| Environmental Conditions | Installation Environment | Indoor / Outdoor |
| Environmental Conditions | Protection Level | IP54 |
| System Features | Installation Structure | Floor-mounted |
| System Features | Remote Monitoring | Supported |
| System Features | Remote Service | Supported |
| System Features | OEM / ODM | Supported |
| System Features | Custom Configuration | Available |
Charging Infrastructure Advantages
The commercial DC fast charging pile is designed for operators that need reliable charging performance and flexible charging station expansion capability. Different power configurations help match varying charging demand and site power conditions, while the dual-connector structure improves charging station efficiency.
For high-demand charging environments, optional liquid cooling helps maintain stable charging performance. The charger can also be integrated with energy storage systems to reduce grid pressure and support peak-load management for commercial charging stations.
Company information
Frequently Asked Questions
Q: What charging environments is the NEDF series designed for?
A: It is designed for commercial charging stations, public parking facilities, fleet charging depots, highway service areas, and urban EV charging projects.
Q: What charging power options are available?
A: The series supports 40kW, 60kW, 80kW, 120kW, 160kW, 180kW, and 240kW configurations.
Q: Can the charger support different EV battery platforms?
A: Yes. The DC200–1000V output range supports many mainstream EV battery systems.
Q: How many charging connectors are standard?
A: The standard configuration includes 2 charging connectors.
Q: Can the charger support more charging guns?
A: Yes. Customized configurations can support up to 4 charging guns per unit.
Q: Is this charger suitable for outdoor use?
A: Yes. The charger supports indoor and outdoor installation with IP54 protection.
Q: What input power supply is required?
A: The charger requires AC380V ±20% input with 3P + N + PE connection.
Q: What is the maximum output current?
A: The maximum output current is 300A.
Q: What cooling solutions are available?
A: Air cooling is standard, and liquid cooling is available as an optional solution.
Q: What is the standard charging cable length?
A: The standard charging cable length is 5 meters.
Q: Can the charger work together with energy storage systems?
A: Yes. It can be integrated with battery energy storage systems for weak-grid charging projects and peak-load management.
Q: Does the charger support remote operation?
A: Yes. Remote monitoring and service support are available to improve operation and maintenance efficiency.
Q: Is the product customizable?
A: Yes. OEM and ODM customization services are available, including branding, cabinet design, connector configuration, and project-specific requirements.
Q: What information should buyers prepare before quotation?
A: Please provide the target country, charging standard, required power, installation environment, quantity, and any customization or energy storage integration requirements.
Q: Why is a floor-mounted charger more suitable for commercial projects?
A: Floor-mounted chargers are better suited for higher power output, multi-vehicle charging, easier maintenance access, and future charging station expansion plans.
