Commercial DC Ev Charger

Level 3 Charger Features：
Input Voltage： AC380V+15%
Working Frequency： 45-65Hz
Output Voltage： 200-750VDC
Single Size： 960mm*620mm*1750mm
Weight Net: 200KG - 310KG
Weight Cross: 358KG - 468KG
IP Level: IP54

Send Inquiry

Fast Delievery
Quality Assurance
24/7 Customer Service

Product Introduction

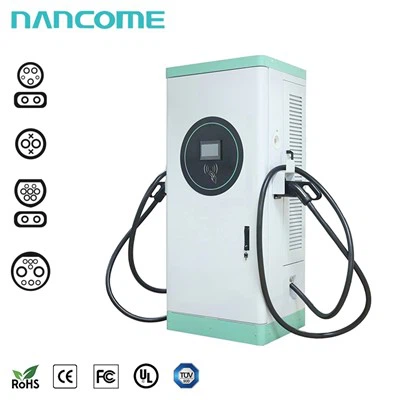

Commercial DC EV Charger for Fleet Electrification

Welcome to our cutting-edge Commercial DC Ev Charger. As corporate fleets and commercial operators transition to electric vehicles, reliable high-powered charging infrastructure will be critical. Our commercial-grade DC EV chargers support charging speeds of up to 180kW, allowing staff member to efficiently charge large numbers of vehicles each day.

Features:

Wide Range of Models: Our Commercial DC Ev Charger is available in four models with varying power outputs of 60kW, 80kW, 120kW, and 180kW. This ensures that we have the perfect solution to meet the charging requirements of a wide range of electric vehicles.
Efficient Power Conversion: With a power factor greater than 0.99, our charging station boasts high output energy conversion rates. This translates to reduced power loss during charging, ensuring an eco-friendly and cost-effective solution.
Versatile Output Voltage: The station offers an output voltage range from 200V to 750V DC, catering to the charging needs of most electric vehicles available in the market. This versatility ensures compatibility across different vehicle makes and models.
Rapid Charging Capability: With a maximum current of 200A, our Commercial DC Ev Charger enables fast charging for most electric vehicles. This feature is particularly beneficial in commercial settings where vehicles need to be efficiently charged during limited time windows.
Advanced Temperature Regulation: The station is designed to perform optimally even in extreme temperatures, with an operating range of -40 to 85℃ (25°C type). The intelligent power reduction system ensures that the charger shell remains below 70°C during operation.

Benefits:

Enhanced Durability: Our Commercial DC Ev Charger is built to endure harsh environments and temperature fluctuations. Its IP54 protection rating safeguards against dust and water, ensuring long-lasting performance and reliability.
Convenient User Interface: The station features a 7-inch color touch screen and an IC card contactless card reader, providing a user-friendly interface for seamless navigation and secure transactions. This ease of use enhances the overall charging experience.

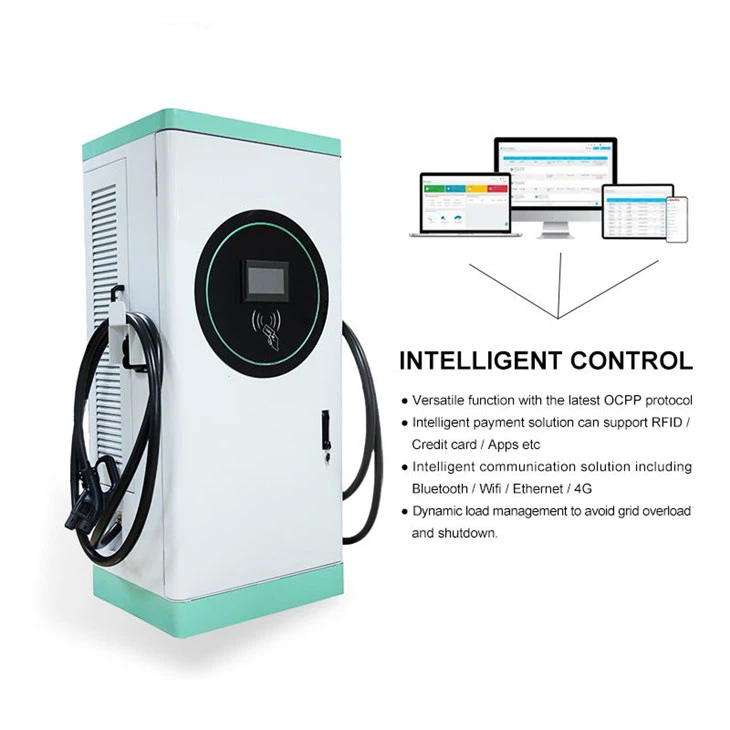

Flexible Connectivity: Our charger supports standard LAN, WiFi, and 4G connectivity options, enabling easy integration into existing networks. This connectivity allows for remote monitoring, control, and maintenance, making charging management hassle-free for commercial users.

Specifications:

Input: AC power supply with a frequency of 45-65Hz.
Power Factor: >0.99.
Input Current and Output Power vary depending on the model.
Output Voltage: 200-750V DC.
Max Current: 200A.
Operating Environment: -40 to 85℃, 25℃ (type).
Storage Environment: -20 to 50℃, 25RH% (type).
Dimensions: 960mm*620mm*1750mm (excluding head, handle, and casters).
Package Dimensions: 1240mm*990mm*2180mm.
Package Weight: 350-468kg.
Protection Level: IP54.
User Interface: 7-inch color touch screen + IC card contactless card reader.
Network Connection: Standard: LAN/WiFi/4G.
Charging Methods: Swipe card, APP, manual.
Charging Modes: Fast and slow gun automatically switch, double gun and charge.
Protocols: CHAdeMO 2.0/DIN 70121, OCPP 1.6 (JSON or SOAP), ISO 15118.

Our Commercial DC Ev Charger is the ideal solution for the charging needs of commercial electric vehicle fleets. With its versatility, efficiency, and user-friendly interface, our charger ensures smooth and reliable charging operations. Experience the future of commercial electric vehicle charging with our industry-leading product today.
