60kw-240kw Dc Fast Charger
The commercial DC fast charging station is designed for high-demand EV charging environments, offering 40–240kW scalable charging power, dual-gun operation, wide DC200–1000V compatibility, and stable performance for fleet, public, and highway charging applications.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Product Description
Reliable DC Fast Charging Solution for Public and Fleet EV Charging
The commercial DC fast charging station is developed for EV charging operators who need efficient charging performance, scalable infrastructure deployment, and reliable long-term operation. It is suitable for public charging stations, commercial parking lots, fleet charging depots, transportation centers, and highway service areas.

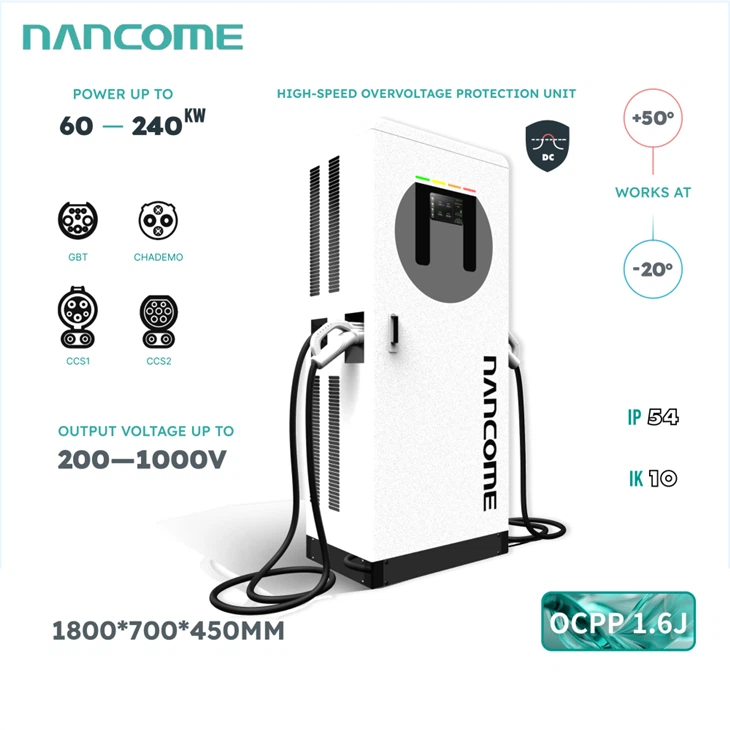

The charger supports flexible power configurations from 40kW to 240kW, helping project developers match charging performance with vehicle demand, site power supply conditions, and operational planning. With a wide DC200–1000V output range, the system supports many mainstream electric vehicles across different voltage platforms.
The standard configuration includes dual charging connectors, while optional multi-gun configurations support up to 4 charging guns per unit for higher charging throughput. This design helps improve station operating efficiency during busy charging periods.

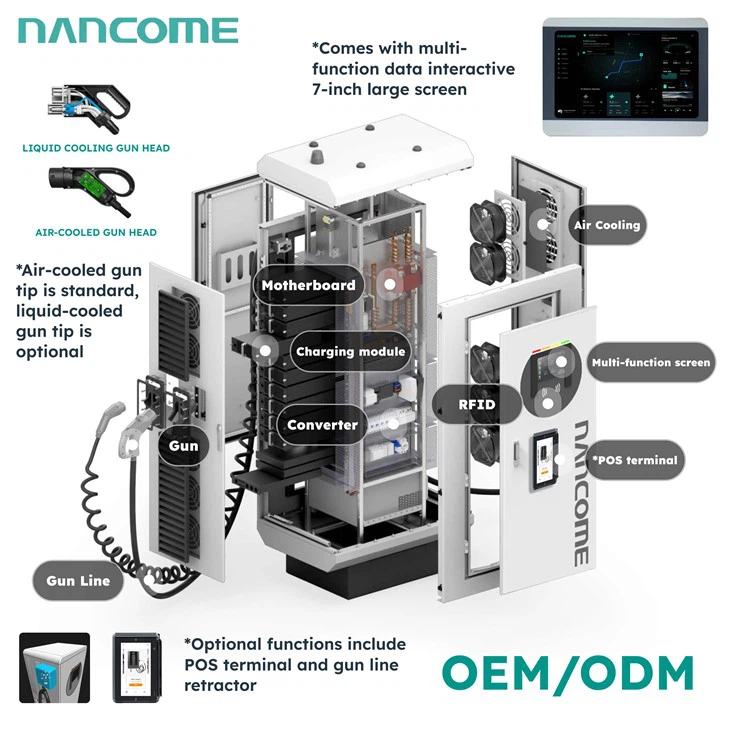

The floor-mounted cabinet structure is built for commercial charging environments and supports indoor and outdoor deployment with IP54 protection. Remote operation capability, optional liquid cooling, and customized configurations make the system suitable for both new charging stations and charging network expansion projects.
Main Features
40–240kW charging power options
Wide DC200–1000V output voltage range
0–300A charging current output
Dual charging connectors included
Optional support for 4 charging guns
Commercial-grade floor-mounted cabinet
Air cooling standard configuration
Optional liquid cooling available

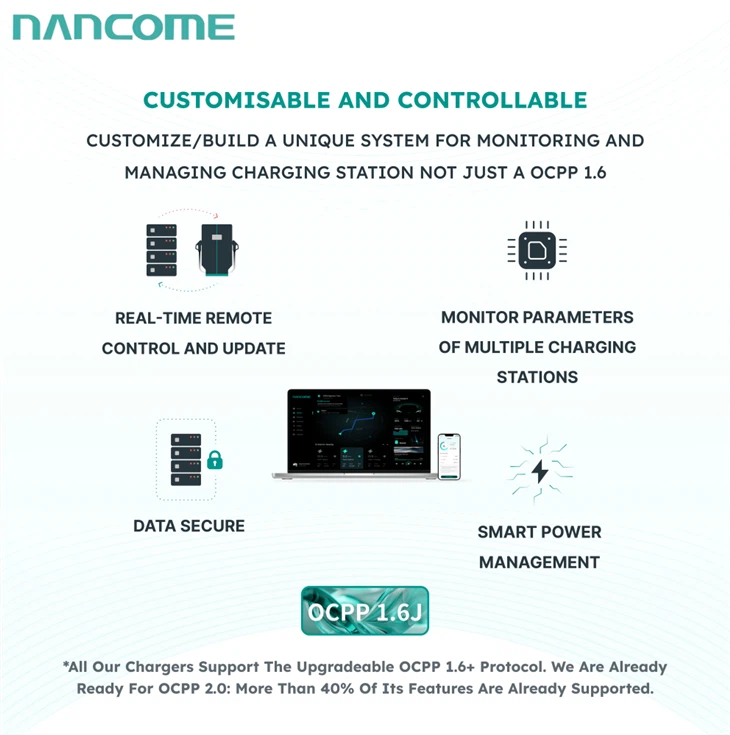

Remote operation and maintenance support
OEM and project customization services
Typical Application Scenarios
Public EV charging stations
Commercial parking charging systems
Taxi and logistics fleet charging depots
Highway fast charging infrastructure
Urban charging network projects
Energy storage integrated charging stations
Technical Specifications
| Category | Item | Specification |
|---|---|---|
| AC Input | Voltage Range | AC380V ±20% |
| AC Input | Input Connection | 3P + N + PE |
| AC Input | Operating Frequency | 45–65Hz |
| AC Input | Power Factor | ≥0.95 |
| DC Output | Output Power | 40 / 60 / 80 / 120 / 160 / 180 / 240kW |
| DC Output | Auxiliary Power Supply | GB/T Standard Compatible with 12V; European / American / Japanese Standards Compatible with 12V |
| DC Output | Output Voltage Range | DC200–1000V |
| DC Output | Output Current | 0–300A |
| DC Output | Charging Connectors | 2 |
| DC Output | Multi-Gun Expansion | Up to 4 charging guns supported |
| DC Output | Charging Cable Length | Standard 5-meter cable |
| DC Output | Cooling Method | Air cooling |
| DC Output | Optional Cooling Solution | Liquid cooling optional |
| Environmental Conditions | Operating Temperature | -20°C to 50°C |
| Environmental Conditions | Storage Temperature | -40°C to 85°C |
| Environmental Conditions | Humidity Range | 5–90% RH, non-condensing |
| Environmental Conditions | Altitude | ≤2000m |
| Environmental Conditions | Installation Environment | Indoor / Outdoor |
| Environmental Conditions | Protection Rating | IP54 |
| System Features | Installation Type | Floor-mounted |
| System Features | Remote Monitoring | Supported |
| System Features | Remote Service | Supported |
| System Features | OEM / ODM | Supported |
| System Features | Custom Configuration | Available |
Advantages for Charging Station Operators
The commercial DC fast charging station is designed to support different charging business models, from moderate-traffic parking locations to high-frequency fleet charging hubs. Flexible charging power options help operators balance infrastructure investment and charging demand according to actual site requirements.
The optional multi-gun design improves charger utilization during peak hours, while remote operation support helps reduce maintenance costs and improve charging station management efficiency. For projects with limited transformer capacity, the charger can also be integrated with battery energy storage systems to improve charging stability.
Products Show
Our Company
FAQ
FAQ
Q: What applications is this commercial DC fast charging station suitable for?
A: It is suitable for public charging stations, fleet depots, commercial parking lots, transportation hubs, and highway charging projects.
Q: What charging power configurations are available?
A: Available charging configurations include 40kW, 60kW, 80kW, 120kW, 160kW, 180kW, and 240kW.
Q: Can the charger support different EV models?
A: Yes. The DC200–1000V output voltage range supports many mainstream EV battery systems.
Q: How many charging connectors are included as standard?
A: The standard configuration includes 2 charging connectors.
Q: Can the charger support additional charging guns?
A: Yes. Customized configurations can support up to 4 charging guns per unit.
Q: Is this charger suitable for outdoor charging stations?
A: Yes. The charger supports indoor and outdoor installation with IP54 protection.
Q: What input power supply is required?
A: The charger requires AC380V ±20% input with 3P + N + PE connection.
Q: What is the maximum charging current?
A: The charger supports 0–300A output current.
Q: What cooling systems are available?
A: Air cooling is standard, while liquid cooling is available as an optional upgrade.
Q: Does the charger support remote monitoring?
A: Yes. Remote operation and maintenance support are available to improve station management efficiency.
Q: What is the standard charging cable length?
A: The standard charging cable length is 5 meters.
Q: Can this charger work with energy storage systems?
A: Yes. It can be integrated with battery energy storage systems for weak-grid charging projects and peak-load management.
Q: Is OEM customization available?
A: Yes. OEM and ODM services are available for cabinet appearance, branding, connector configuration, and project customization.
Q: What information is needed before quotation?
A: Please provide the target country, charging standard, required power, quantity, installation environment, and any customization requirements.
Q: Why choose a floor-mounted commercial DC charger?
A: Floor-mounted chargers are more suitable for high-power charging, multi-vehicle operation, easier maintenance access, and scalable charging infrastructure projects.
