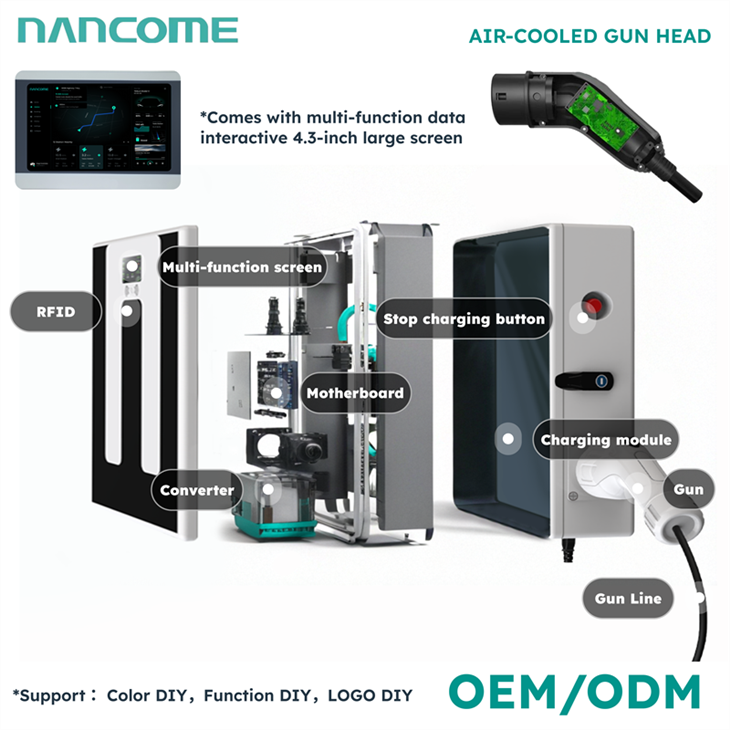

Wall-mounted EV Charger
This wall-mounted EV charger combines sophisticated design with high performance, with two outputs of 11kW and 22kW to meet the needs of different vehicle models. It is wall-mounted, has a small footprint and a refined appearance. Simple plugging and unplugging operation allows charging without complicated settings, reliable power supply and safety standards ensure smooth and convenient use for drivers.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Product Display
Combining industrial-grace aesthetics with advanced charging technology, the "Wall-mounted EV Charger" is made for discerning consumers seeking a reliable, high-performance home charging solution.
🔋 Diverse Power Output: Equipped with both 11kW and 22kW settings, this charger caters to all your charging needs, adapting effortlessly to different EV models and user preferences for a tailor-made charging experience.
🔧 Innovative Mounting: Save space and ensure a clean look with this elegantly wall-mounted charger. Its sturdy and unobtrusive installation is an ode to modern design principles, providing a sophisticated touch to any residence.
📏 Space-Conscious Design: Despite its commanding power, this charger is a masterclass in space economy. Its compact dimensions blend seamlessly into any home setting, complementing its surroundings with its dynamic design language.
⚡ Consistently Reliable Output: With electrical input parameters crafted to precision, the charger offers a reliable power source day-in and day-out, backed by its exceptional measurement accuracy.
🔌 Plug-and-Play Convenience: Say goodbye to complex charging setups. This charger is the epitome of user-friendliness, offering a straightforward plug-in system accompanied by an auto charging completion feature for the utmost ease of use.
🛡️ Safety First Philosophy: Built to the highest safety standards in the industry, and tested against extremes of temperature and humidity,
this charger reassures you of a safe charging environment. Operational safety is its bedrock, ensuring peace of mind for every user.
| Detailed specifications | Rated power | 11kw | 22kw |
| structure appearance | Installation method | Wall mounted/column mounted | Wall mounted/column mounted |
| Wiring method | Bottom line in, bottom line out | Bottom line in, bottom line out | |
| Equipment size | 500*350*130mm | 500*350*130mm | |
| equipment weight | 20Kg | 20Kg | |
| Cable length | 5m | 5m | |
| Electrical indicators | Input voltage | AC380V±20% | AC380V土20% |
| Input frequency | 50±lHz | 50±lHz | |
| rated power | llkW | 22kW | |
| Measurement accuracy | 1级 | 1级 | |
| The output voltage | AC380V±20% | AC380V土20% | |
| Output current | 32A | 32A | |
| Current limit protection value | 2110% | 2110% | |
| Measurement accuracy | Level 1.0 | Level 1.0 | |
| HMI | LED indicator bar | LED indicator bar | |
| feature design | Charging mode | Automatic full charge | Automatic full charge |
| charging method | Plug and play | Plug and play | |
| payment method | NO | NO | |
| Networking method | NO | NO | |
| Executive standard | IEC61851-l:2017,ICE 62196-2:2016 | 1 EC 61851-1:2017,ICE 62196-2:2016 | |
| Safe design | security function | overvoltage protection, undervoltage protection, overload protection, short | overvoltage protection, undervoltage protection, overload |
| Operating temperature | -20°C~+50°C | -20 °C >50 °C | |
| Environmental indicators | Working humidity | 5%〜95% non-condensing frost | 5%〜95% non-condensing frost |
| Working altitude | <2000m | <2000m | |
| Protection level | IP54 | IP54 | |
| cooling method | Natural air cooling | Natural air cooling | |
| Noise control | W40dB | W40dB | |
| MTBF | 30, 000 h | 30, 000 h |
This Wall-mounted EV Charger not only stands out for its performance but also for its user-centric design and steadfast focus on safety. It's not just the best choice-it's the smart choice for home charging solutions.
